Description

This Geberit bathtub inlet with turn handle and drain is a high-quality bath waste and overflow system designed for standard-size bathtubs with a Ø52mm valve hole.

By filling the bath through the overflow it creates a seamless look perfect for architectural and design-led projects.

Suitable for steel, plastic, and cast-iron baths, it has an integrated inlet for fast filling, a turn handle and a 50mm water seal trap.

Certified to EN 274-3, it delivers performance with low noise (15 dB at 3 bar), adjustable inlet jet alignment, and double-sided seals for leak resistance.

Key Features:

• Integrated inlet & overflow – bath filling and overflow protection
• Rotary turn handle – open & close control from inside the bath
• Low-noise performance – only 15 dB(A) at 3 bar (Sound Class 1)
• High flow capacity – inlet capacity 0.35 l/s, overflow discharge 0.6 l/s
• Odour protection – 50mm water seal trap
• Flexible installation – adjustable inlet jet and extendible overflow mount
• Double-sided seals on drain and overflow
• Tested to EN 274-3
• Genuine Geberit part ensures compatibility

Technical Specifications:

• Product Type: Bathtub drain with turn handle & inlet
• Waste Hole Diameter: Ø52mm

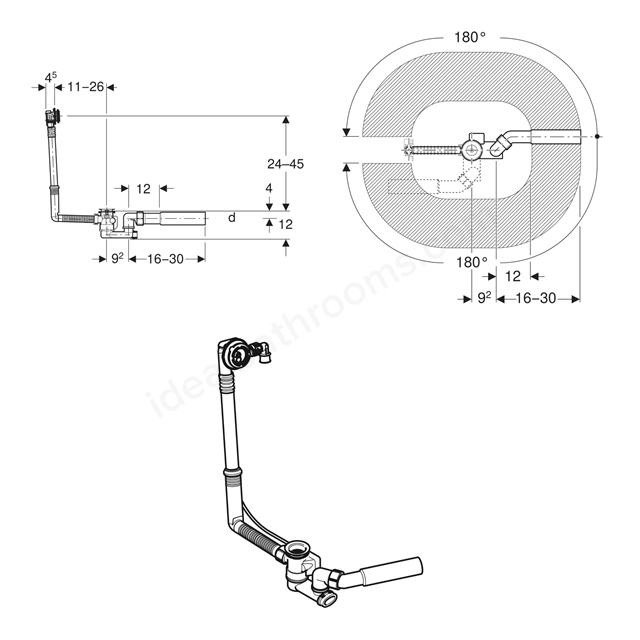

• Overall Length: 110-260mm
• Overall height: 240-450mm
• Outlet Diameter: Ø40 / Ø50mm
• Trap Water Seal Depth: 50mm
• Inlet Capacity: 0.35 l/s at 3 bar
• Overflow Discharge Rate: 0.6 l/s
• Sound Level: 15 dB(A) at 300 kPa Sound Class: 1
• Standards: EN 274-3 compliant

What’s Included:

• Overflow head with integrated inlet
• Waste outlet
• Trap
• 90° elbow tap connector with MasterFix, 1/2", radial sealing
• HDPE connection bend Ø40 / Ø50 mm
• Protection box
• Fastening materials

Key Features

• Integrated inlet & overflow
• Rotary turn handle
• Low-noise performance, Sound Class 1
• Flexible installation
• Suitable for standard size steel, plastic, & cast-iron bathtubs
