Description

This Geberit bathtub inlet with turn handle and drain is a ready-to-fit bath waste and overflow system designed for large or custom size bathtubs with a Ø52mm valve hole finished in chrome.

By filling the bath through the overflow it creates a seamless look perfect for architectural and design-led projects. Finished in chrome, it provides water control via an actuator rosette and matching waste plug.

Suitable for steel, plastic, and cast-iron baths, it has an integrated inlet for fast filling, a turn handle and a 50mm water seal trap.

Certified to EN 274-3, it delivers performance with low noise (15 dB at 3 bar), adjustable inlet jet alignment, and double-sided seals for leak resistance.

Key Features:

• Integrated inlet & overflow – bath filling and overflow protection
• Rotary turn handle – open & close control from inside the bath
• Low-noise performance – only 15 dB(A) at 3 bar (Sound Class 1)
• High flow capacity
• Odour protection
• Flexible installation – adjustable inlet jet and extendible overflow mount
• Double-sided seals on drain and overflow
• Tested to EN 274-3
• Genuine Geberit part ensures compatibility

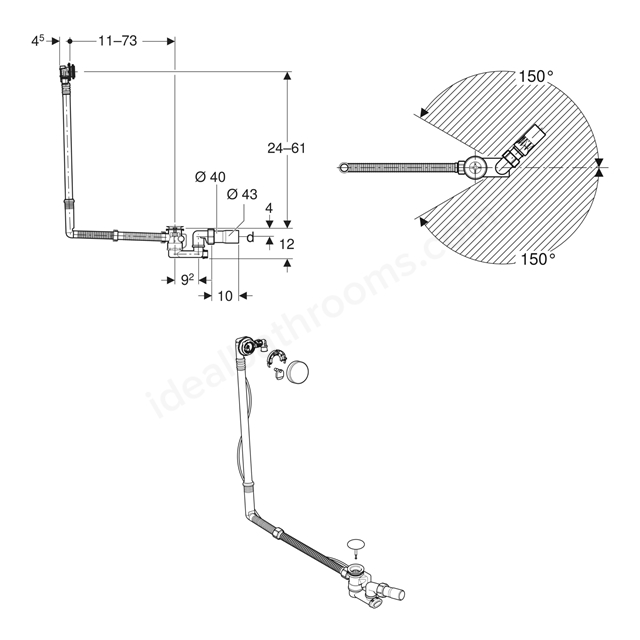

Technical Specifications:

• Chrome Waste Hole Diameter: Ø52mm
• Overall Length: 110-730mm
• Overall height: 240-640mm
• Outlet Diameter: Ø40 / Ø50mm
• Bath compatibility: Large or custom steel, plastic (acrylic) and cast-iron
• Trap Water Seal Depth: 50mm
• Inlet Capacity: 0.35 l/s at 3 bar
• Overflow Discharge Rate: 0.6 l/s

What’s Included:

• Overflow head with integrated inlet
• Waste outlet

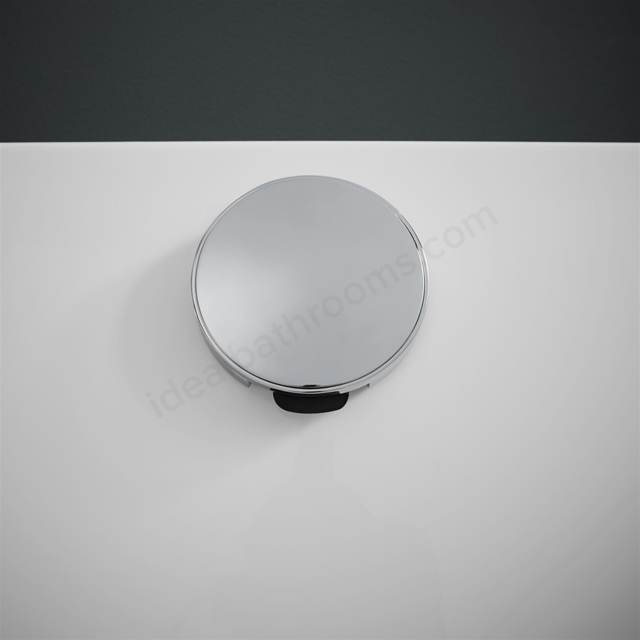

• Chrome actuator rosette
• Chrome waste plug
• Trap
• 90° elbow tap connector with MasterFix, 1/2"", radial sealing
• HDPE connection bend Ø40 / Ø50 mm
• Protection box
• Fastening materials

Key Features

• Integrated Inlet & Overflow
• Complete Ready-to-Fit Set with Rosette & Waste Plug
• Rotary turn handle, open & close control from inside the bath
• Odour protection
• Suitable for large & custom size steel, plastic, & cast-iron bathtubs

Specification
