Description
This Twyford Concealed Thermostatic Shower Mixer offers professional-grade performance, safety, and style — engineered for public and semi-public washrooms including schools, healthcare facilities, and commercial environments.
With a concealed design, brass construction, and precise thermostatic control, this mixer ensures user comfort, hygiene, and longevity.
The single lever allows effortless control of water flow and temperature, while the thermostatic cartridge maintains a consistent and safe temperature, even under pressure fluctuations.
Supplied with a durable 90° brass elbow connector, ensuring secure alignment between the concealed mixer and shower head outlet.
This WRAS and TMV3-approved shower valve ensures consistent water temperature and optimal performance under varying conditions.
Key Features:
- Thermostatic Temperature Control: Ensures consistent water temperature for maximum safety, factory pre-set to 38°C
- Single Lever Operation: Smooth and simple to use, providing effortless control of both flow and temperature
- Includes: 90° degree elbow tap connector
- Concealed Installation: Creates a clean finish ideal for modern washrooms
- High-Quality Chrome Finish: Durable, corrosion-resistant and easy to clean
- TMV3 and WRAS Approved: Fully compliant with NHS D08 and UK safety standards for use in commercial and healthcare settings
- Fail-Safe Function: Automatically shuts off if either hot or cold water supply fails
- Made by Twyford with over 160 years of innovation
Technical Specifications:
- Finish: Chrome
- Mounting Type: Surface Mounted
- Inlet Connections: 15mmØ copper pipe
- Hose Connection: ½" BSP
- Material: Durable chrome-plated brass and ABS
- Operating Pressure: 0.5-10 Bar
- Flow Rate: 18.8 Litres Per Minute
- Factory Preset Temperature: 38°C

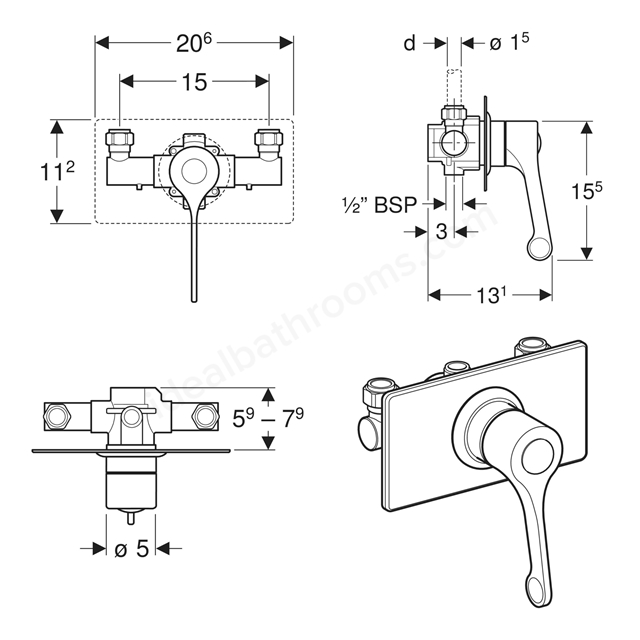

- Width: 206mm
- Depth: 131mm
Compliance & Standards
- TMV3 approved for healthcare and commercial safety compliance
- WRAS approved for water regulation conformity
- Meets BS 7942:2000 and NHS Model Engineering Specification D08
- Anti-scald safety compliant with Care Standards Act 2000
Perfect For:
- Hospitals and healthcare facilities
- Schools, universities, and sports centres
- Hotels, gyms, and leisure clubs
- Public washrooms and commercial buildings
- Accessible or assisted-use bathrooms
Key Features
- With Elbow Tap Connector
- Thermostatic Temperature Control
- Outlet Connection (½" BSP)
- TMV3 & WRAS Approved
- Anti-Scald Protection
