Description

This Twyford Alcona Rimless Raised WC Pan is designed for modern bathrooms that need practicality and performance.

Its rimless flush technology ensures a powerful and efficient clean, with no hidden rim for dirt and bacteria to accumulate — making cleaning quicker and easier than ever.

Perfect for family homes, commercial spaces, and care environments, it provides added comfort for users who prefer a higher seating position.

Pair this toilet pan with a matching Geberit Concealed Cistern & Flush Plate (109.004.21.1) and Soft-Close Seat (AR7851WH) for a complete solution.

Key Features:

• Compact - 520mm depth makes it ideal for family bathrooms and cloakrooms
• Raised Height 465mm seat level (75mm higher than standard seat height) - Easier sitting and standing, ideal for comfort and inclusive use
• Back-to-Wall Design - Conceals pipework neatly for a minimal, modern aesthetic
• Rimless Technology – Innovative rimless design eliminates hidden areas, ensuring maximum cleanliness and easier maintenance
• Horizontal outlet – Compatible with standard UK soil pipe connections, making replacement or new installation simpler
• Durable vitreous china – Long-lasting, easy-to-clean glazed ceramic resists stains and scratches
• EN 997 Type 2 compliant – Tested for superior flushing performance and water efficiency
• Twyford Bathrooms quality – designed with over 160 years of expertise

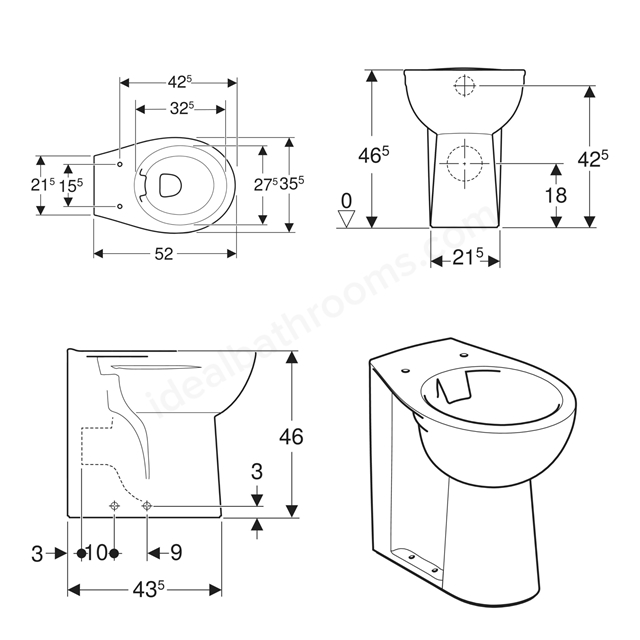

Technical Specifications:

• Width: 355mm
• Height: 465mm
• Depth: 520mm
• Outlet: Horizontal
• Material: Vitreous china

Installation Notes:

• Leave at least 3mm clearance between the rear of the pan and the wall to accommodate sealing and adjustment
• Fixings supplied
• Combine with a Geberit Concealed Cistern & Flush Plate (109.004.21.1) and Soft-Close Seat (AR7851WH)

Perfect For:

• Ideal for people who benefit from a higher seat for easier sitting and standing
• Suitable for those with reduced mobility
• Offices, care homes, and accessible washrooms
• Replacements of old close-coupled WCs with minimal plumbing changes

Key Features

• Raised Height 465mm seat level, 75mm higher than standard
• Horizontal Outlet
• Back-to-Wall Space Saving Design
• Made from Vitreous China
• Combine with Geberit Concealed Cistern (109.004.21.1)

Specification
