Description
This Geberit Low-Height Concealed Cistern is ideal for bathrooms where space is limited it is provided with a chrome Type 01 dual-flush pneumatic Flush Button.
This concealed cistern delivers efficient water usage with style and practicality. Perfect for floor-standing WCs in furniture units or low-height pre-wall installations.
Key Features:
• Low-Height Design: Optimised for furniture or part-height installations
• Dual Flush: Factory settings at 5.8/3 litres; includes reduction cup for 4.0/2.6 litre flush
• Pneumatic Flush: Includes Type 01 chrome-plated button

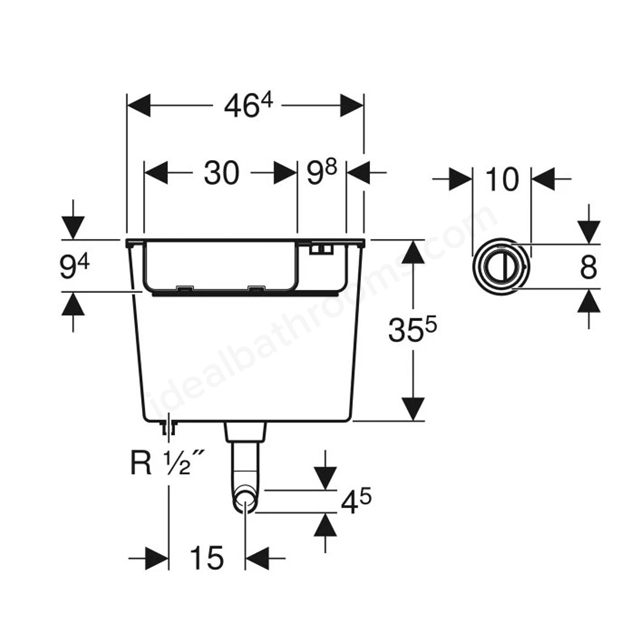

• Compact Dimensions: Slim 132mm depth makes it ideal for tight spaces
• Durable & Certified: Complies with EN 14055, Class II for performance standards
• Flexible Installation: For drywall construction, pre-walls, and furniture installations
• Eco-Friendly: Can operate with filtered used (rain) water
Perfect For:
• Low-level WC installations
• Bathrooms with height restrictions
• Vanity units and bathroom furniture integration
• Domestic or light commercial use
Technical Specifications:
• Flush Volume: 6/3 litres (adjustable)
• Actuation Type: Pneumatic dual flush
• Flow Pressure: 0.1 – 10 bar
• Max Water Temp: 25°C
• Water Supply Connection: Bottom left (R ½”)
• Material: Durable plastic
• Flush Pipe: Ø45mm with compression joint (flush bend 90° included)
What’s Included:
• Geberit low-height concealed cistern
• Type 01 chrome pneumatic dual-flush button
• 90° flush pipe bend
• Flush volume reduction cup
• Fixings for flush pipe and actuator
Key Features
- Designed for modern bathroom furniture
- Comes complete with Chrome Flush Button
- For back-to-wall floor-standing WC
- Clean, tidy, minimalist look
- Ideal for tight spaces at 132mmD
