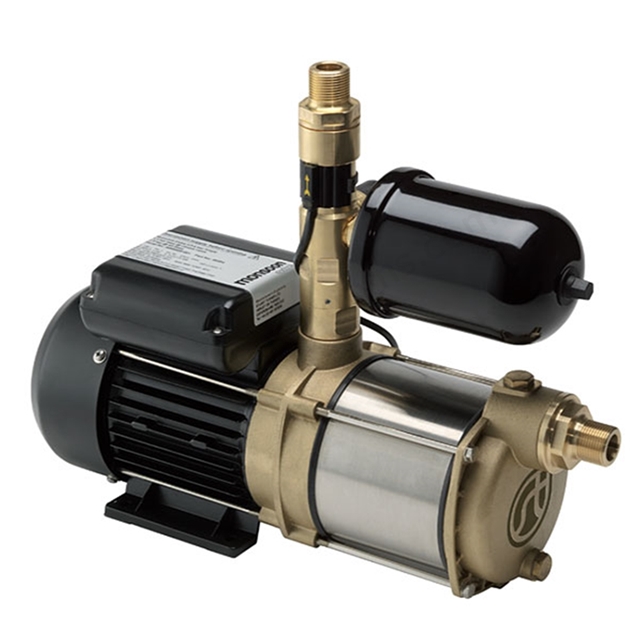

Stuart Turner Stuart CH Universal 5.0 bar Single - Water Boosting Pump

46595

*Please note, you add your free product after adding the main product to the basket.

Required Product Products you may also need
SKU No. 46349 Stuart Turner Stuart CH Single Stage Boostamatic CH 12-14 B
Qty: 1 £957.60 RRP Inc VAT
SKU No. 46387 Stuart Turner Stuart CH 9-14 FL Standard 1.4 bar Single - Water Boosting Pump
Qty: 1 £781.20 RRP Inc VAT
SKU No. 46593 Stuart Turner Stuart CH Universal 2.6 bar Single - Water Boosting Pump
Qty: 1 £933.60 RRP Inc VAT
SKU No. 46594 Stuart Turner Stuart CH Universal 3.6 bar Single - Water Boosting Pump
Qty: 1 £1,027.20 RRP Inc VAT
RRP Inc VAT
Total £1,309.20
Add to Quote

Description

Monsoon Extra are high flow rate pumps designed for meeting power showering and pressure boosting demands in larger homes; leisure centres and hotels. Monsoon Extra universal single pumps are suitable for larger domestic and light commercial applications and can be installed into an open vented hot or cold water system where outlets are either above or below the level of the cold water cistern.

The Stuart Turner MONSOON EXTRA Universal 5.0 bar Single - Water Boosting Pump is a popular choice from the Stuart Turner Monsoon Extra Range.

Specification

Brand
Stuart Turner
Pump Connections
G 1" Male
Pump Current
7.3 Amps
Pump Cut In Pressure
1.8 bar
Pump Cut Out Flow
1 L/min
Pump Duty
Continuous
Pump Feet
Anti Vibration
Pump Flexible Hoses
300mm
Pump Flow Switch
1.0 L/min
Pump Fuse Rating
13 Amps

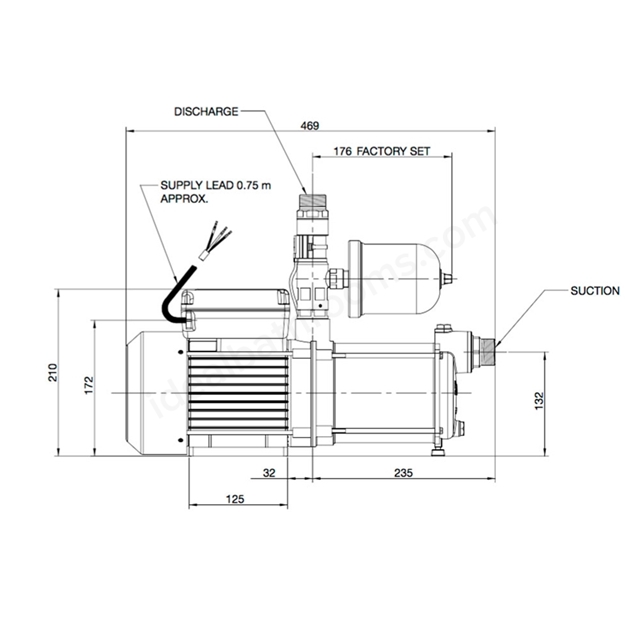

Pump Height
332mm
Pump Induction
Thermally protected
Pump Inlet Strainers
2 Supplied
Pump Length
469mm
Pump Maximum Air Temperature
40° C
Pump Maximum Head Pressure
5.0 bar
Pump Maximum Inlet
10 metres
Pump Maximum Outlet
13 metres
Pump Maximum Water Flow
135 L/min
Pump Maximum Working Pressure
9.0 bar
Pump Mechanical Seal
EPDM/Carbon/Ceramic
Pump Performance 1
Performance @ 45 l/min 4.7 bar
Pump Performance 2
Performance @ 90 l/min 3.0 bar
Pump Power Cable
0.75 metres
Pump Power Consumption
1630 Watts
Pump Power Supply
230 V
Pump Pressure Vessel
30.5 psi
Pump Protection
IPX5
Pump Quiet Operation?
No
Pump Run Dry Protection
Yes
Pump Run On Timer
3 sec
Pump Type
Centrifugal
Pump Water Temperature
65° C
Pump Weight
18.2kg
Pump Width
187mm
Range
Monsoon Extra
