Description

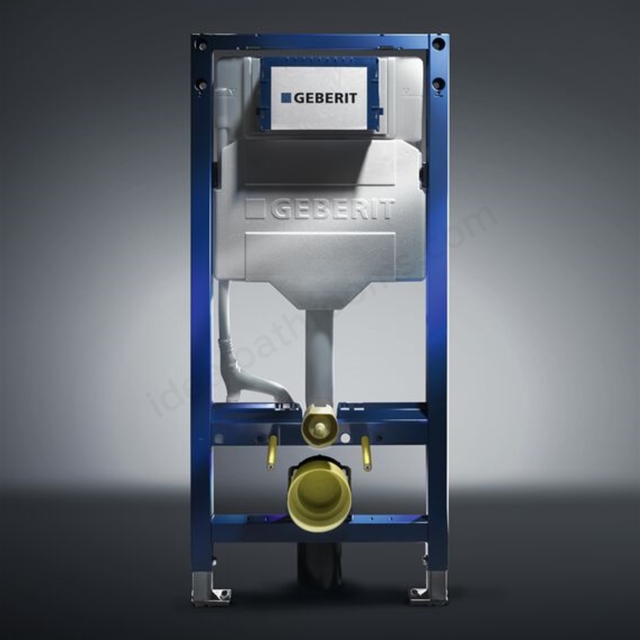

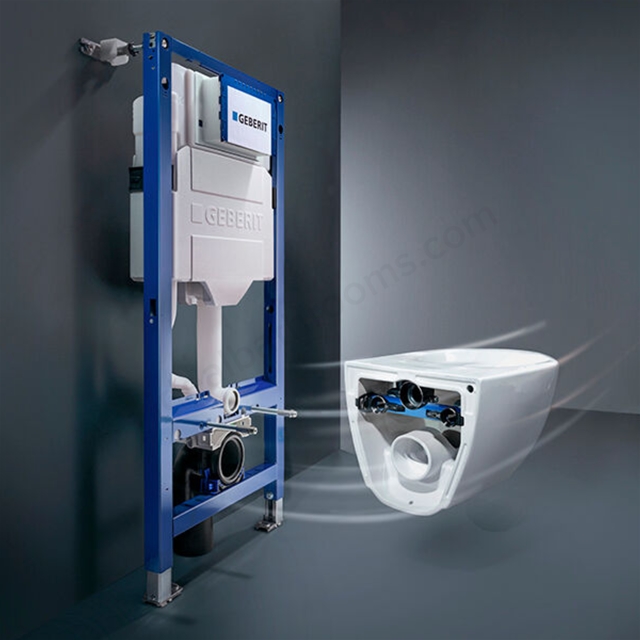

This next-generation redesigned Geberit Sigma 112cmH Frame & Cistern for Wall-Hung WC’s combines 60 years of engineering expertise and installer feedback to deliver you an enhanced performance, faster installation, and superior sustainability.
Key Upgrades - Performance:

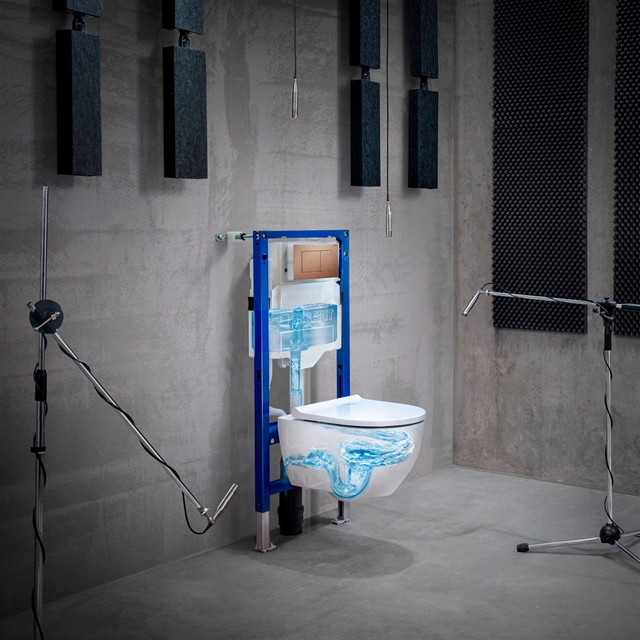

• Over 30% quieter than before
• Optimised Hydraulics with upgraded Type 383 fill valve and Type 212 flush valve for ultra-quiet, water-saving performance (2-4L small/5.8L large)
• Compatible with WC pans up to 700mm deep, ideal for futureproofing your bathroom
• Up to 10x better flush performance with TurboFlush-ready compatibility (when combined with a Geberit TurboFlush pan)
• Compatibility with new Geberit Sigma40 Flush Plates & Geberit DuoFresh
Key Upgrades - Installation:
• 40% faster installation than the previous model
• Pull-Out Side Fastening Plate for faster vertical stud mounting
• Hexalobular Screws offer tool flexibility with better grip for power tools
• Alternative Wall Anchor Positions accommodate tricky wall conditions like pipes or cables
• Adjustable Pipe Bracket for stress-free connection bend installation
• Additional Laser Markings on the frame for accurate centre positioning of the threaded rods and connection bend
• Leg Support Adjustable to 25cm, ideal for modern, high floor constructions
• Long-term spare parts support (50 years)
Compatible With:
• Geberit Sigma Flush Plates & Geberit Pneumatic Flush Buttons
• Geberit AquaClean Shower Toilets
• Geberit DuoFresh
What’s Included:
• Water supply connection R 1/2" with integrated angle stop valve and hand wheel
• Protection box for service opening
• 2 wall anchors
• Connection set for WC, ø90mm
• PE-HD Connection bend ø90mm
• PE-HD adaptor socket ø90/110mm
• Fastening and protection materials
Application Purposes:
• Designed for Wall-Hung WC’s in part- or room height pre-walls or partition walls
Other Features:
• WRAS Approved
• For wall-hung WCs with projections up to 70cm
• Pull-out vertical plate for lateral fastening above the element on metal or wood studs
• Alternative fastening points for wall anchors & rotating foot plates
• Connection bend can be mounted without tools at different depths, adjustable range 45mm
• Cistern fulfils standard requirements in accordance with EN 14055, Class II
• Tool-free installation and maintenance work on concealed cistern
• Water supply connection on the rear or top centre
• Protection box can be cut to length, protects against moisture and dirt
• With conduit feed pipe for Geberit AquaClean shower toilets
• Fastening for electrical connection and Power & Connect Box
• Compatible with 130+ Geberit Sigma flush plate finishes & styles
• Strength-tested to bear 400kg of weight when combined with Geberit Wall-Hung Toilets
• 50 Year spare parts Guarantee
• Installed 70 million times over the past 60 years
Key Features
- Compatible with Geberit Sigma Flush Plates & Geberit Pneumatic Flush Buttons
- 40% faster installation than the previous model
- Strength-tested to bear 400kg of weight when combined with Geberit Wall-Hung Toilets
- 50 Year Spare Parts Guarantee
- Installed 70 million times over the past 60 years
