Description
This next-generation redesigned Geberit Sigma 112cmH Frame & Cistern for Wall-Hung WC’s combines 60 years of engineering expertise and installer feedback to deliver you an enhanced performance, faster installation, and superior sustainability.

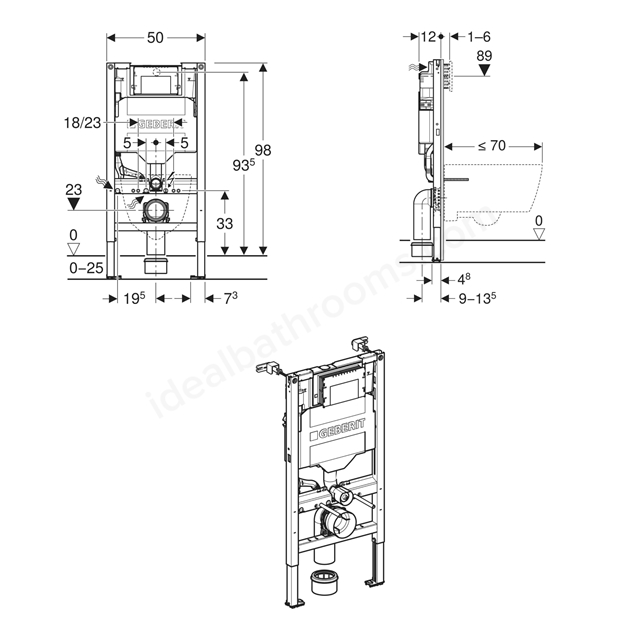

At 98cm high this Geberit frame is perfect for under window installations or for part-height installations in drywall construction.
Combine with Geberit Sigma Flush Plates
Key Upgrades - Performance:
• Over 30% quieter than before
• Optimised Hydraulics with upgraded Type 383 fill valve and Type 212 flush valve for ultra-quiet, water-saving performance (2-4L small/5.8L large)
• Compatible with WC pans up to 700mm deep, ideal for futureproofing your bathroom
• Up to 10x better flush performance with TurboFlush-ready compatibility (when combined with a Geberit TurboFlush pan)
• Compatibility with new Geberit Sigma40 Flush Plates & Geberit DuoFresh
Key Upgrades - Installation:
• 40% faster installation than the previous model
• Pull-Out Side Fastening Plate for faster vertical stud mounting
• Hexalobular Screws offer tool flexibility with better grip for power tools
• Alternative Wall Anchor Positions accommodate tricky wall conditions like pipes or cables
• Adjustable Pipe Bracket for stress-free connection bend installation
• Additional Laser Markings on the frame for accurate centre positioning of the threaded rods and connection bend
• Leg Support Adjustable to 25cm, ideal for modern, high floor constructions
• Long-term spare parts support (50 years)
Compatible With:
• Geberit Sigma Flush Plates & Geberit Pneumatic Flush Buttons
• Geberit AquaClean Shower Toilets
• Geberit DuoFresh
What’s Included:
• Water supply connection R 1/2" with integrated angle stop valve and hand wheel
• Protection box for service opening
• 2 wall anchors
• Connection set for WC, ø90mm
• PE-HD Connection bend ø90mm
• PE-HD adaptor socket ø90/110mm
• Fastening and protection materials
Key Features
- Perfect for under window or part-height installations
- High-quality construction
- Easy installation
- TurboFlush-ready compatibility
- Combine with Geberit Sigma Flush Plates
