Description
This 79cm Frame & Cistern for Wall-Hung WC is designed for use within bathroom furniture and part-height prewalls, this concealed frame offers a clean and minimal finish, allowing only the WC pan and flush plate to be visible.
Engineered for both metal and wood-frame wall constructions, this self-supporting, powder-coated steel frame integrates a low-height dual-flush cistern for efficient and sustainable water use. Enjoy a contemporary wall-hung WC setup without the hassle of major plumbing modifications.
Combine with Geberit pneumatic flush buttons
Key Features:
• Height: 79 cm – perfect for furniture units
• Self-supporting frame – powder-coated steel construction for corrosion resistance
• Dual-flush cistern – factory preset at 5.8 & 3 litres (adjustable to 4.0 & 2.6 litres)
• Universal compatibility – suitable for WC pans with a projection up to 62cm (EN 33)
• Water inlet: Bottom left, ½" connection
• Pneumatic flush actuation – compatible with Geberit Type 01 and Type 10 flush buttons
• Suitable floor construction: 0–18cm
• Not compatible with: Geberit AquaClean
Perfect For:
• Bathroom furniture installations
• Compact or low-ceiling bathrooms
• Minimalist, wall-hung WC designs
Technical Specifications:

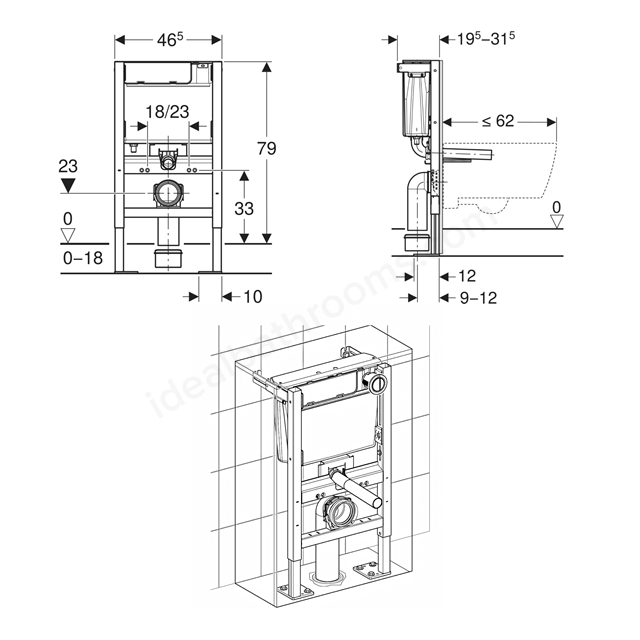

• Dimensions: Width: 46.5cm, Height: 79cm, Depth: 19.5–31.5cm (adjustable)
• Flow pressure: 0.1–10 bar
• Max water temperature: 25°C
• Material: Steel frame with PE-HD components
What’s Included:
• 90° PE-HD connection bend (Ø90mm)
• Adaptor socket (Ø90/110mm)
• Cup for flush volume reduction
• Fixings and protection materials
Key Features
- Designed for use within bathroom furniture
- Frame for wall-hung WCs with connection dimensions as per EN 33 and projection up to 62cm
- With large foot plates for raised power supply in floors
- Combine with Geberit pneumatic flush buttons
- Perfect for compact or low-ceiling bathrooms
