Description

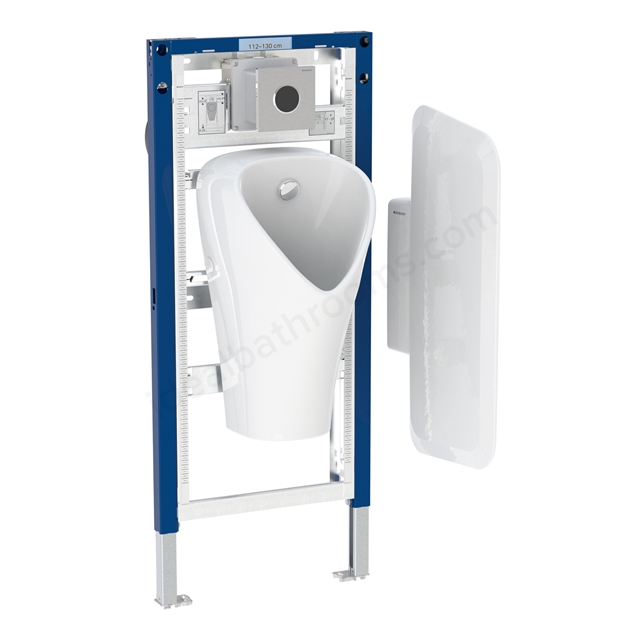

This Geberit Frame for Urinal 130cmH is a versatile, robust and installation-friendly support frame designed for modern urinal systems. This unit includes a pipe interrupter, concealed housing for flush controls, and height-adjustable fastening making it ideal for both new builds and renovations.
Perfect for metal or wood stud walls, room-height partitions, this self-supporting frame is coated with anti-corrosion protection for long-lasting durability.
Key Features:
• Application: For urinals, with Geberit concealed flush controls
• Compatible Wall Types: Metal, wood, and room-height partitions
• Self-Supporting: Powder-coated, corrosion-resistant steel frame
• Installation Range: Floor construction height 0–25cm
• Integrated Pipe Interrupter: Prevents backflow, maintaining hygiene
• Adjustability: Width and height-adjustable urinal fasteners (M8)
• Flush Technology: Built-in conduit pipe allows rinsing of supply line
• Service Box: 10.5 x 10.5cm, cuttable without tools
• Sound-Absorbing Fixings: Reduces operational noise
• Ready for Accessories: Can be adapted to urinals with spray heads
Technical Specifications:

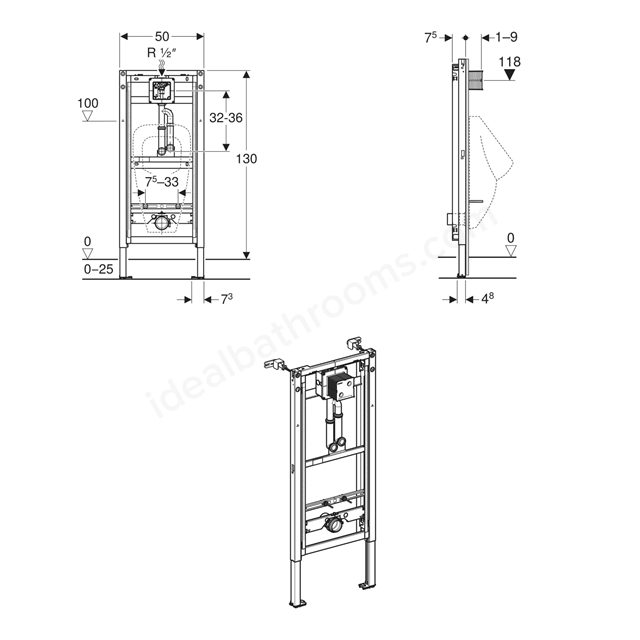

• Dimensions (W x H x D): 50 x 130 x 7.5cm
• Flow Pressure: 1–8 bar
• Test Pressure (Water): 16 bar
• Test Pressure (Air/Inert Gas): 3 bar
• Max Water Temp: 30°C
• Flow Rate @ 1 bar; Without limiter: 0.3 l/s; With limiter: 0.18 l/s
What’s Included:
• Water supply connection R ½"
• PVC straight connector (ø 50mm)
• Protection box with cover
• Urinal trap (ø 50 mm) with seal
• Inlet connection pipe (ø 32 mm)
• Wall anchors (x2)
• Fastening and protection material
Key Features
- For urinals with Geberit concealed flush controls
- Built-in conduit pipe allows rinsing of supply line
- Easy installation
- Integrated pipe interrupter prevents backflow, maintaining hygiene
- Height-adjustable fastening
