Description

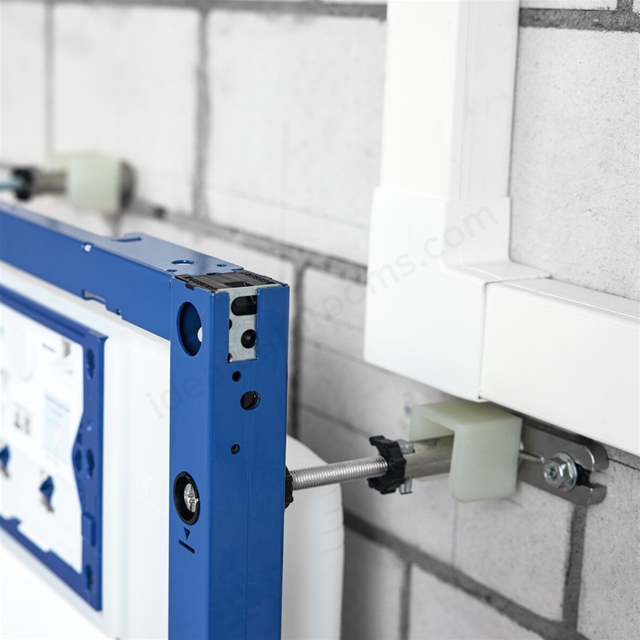

This Geberit Duofix set of wall anchors is a fixing solution designed to securely fasten Geberit Duofix frames to drywall or solid walls.
Supplied as a pair, the anchors feature tool-free front depth adjustment (135–200mm), a 360° rotating wall fixation, and a zinc-plated M10 threaded rod for fast, precise and reliable installation in part-height and single pre-wall applications.

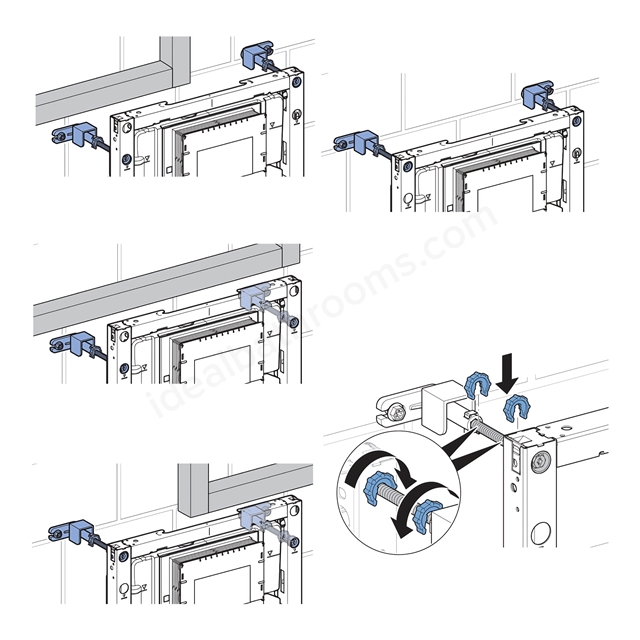

With this flexibility these anchors when installing a Geberit Frame allow 16 different fixing locations and variations (see images) which allows you to work around existing pipes or fixings.
Engineered for speed and accuracy on site, this Duofix wall anchor set allows installers to align frames perfectly even when wall conditions vary.
The infinitely variable front adjustment means you can fine-tune the depth after positioning the frame, while the rotating wall head ensures a secure fixing regardless of mounting angle.
Ideal for professional installers working on toilet, basin or bidet frames within the Duofix system.
Key Features:
- Purpose built for Duofix frames – secure fixing in front of drywalls or solid walls
- Infinitely adjustable depth (135–200mm) from the front for precise alignment
- Fast adjustment mechanism saves installation time
- 360° rotating wall fixation adapts to different wall orientations
- Durable construction: die-cast zinc, steel and plastic components
- M10 zinc-plated threaded rod for strength and corrosion resistance
- Supplied as a set of 2 – ready for single frame installation
Technical Specifications:
- Product type: Wall anchor set for pre-wall installation

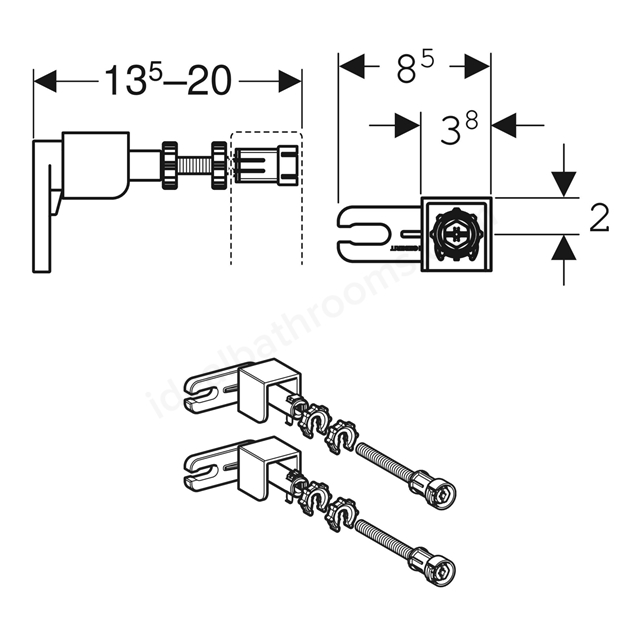

- Adjustment range: Approx. 135–200mm
- Thread: M10
- Material: Die-cast zinc / steel / plastic
- Installation type: Single installation, part-height pre-wall
- Compatibility: Geberit Duofix frames
Compatible with standard Geberit Duofix frames; extension sets are available separately where additional reach is required.
Key Features
- 16 Different Positions Available to Work around Existing Fittings
- 360° Rotating Wall Fixation
- Threaded Rod M10; Zinc Plated
- Purpose built for Duofix frames
- Adjustable Depth (135–200mm)
