Description
This Geberit Frame for Showers features a sleek wall drain and support for wall-mounted taps. Engineered for strength and flexibility, this 130cmH self-supporting frame is ideal for low-profile, floor-even showers.
Compatible with tile structures and versatile in installation, it's a perfect choice for both residential and light commercial applications.
Key Features:
• Concealed & Space-Saving Design: Clean wall integration with a wall drain and wall-mounted tap setup

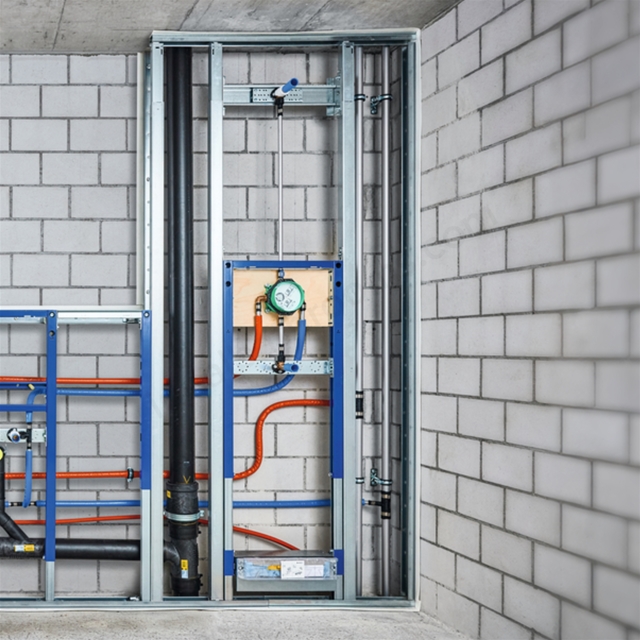

• Flexible Installation: Suitable for metal/wood stud walls, partition walls
• Corrosion-Proof Frame: Powder-coated, galvanised, and non-slip leg supports
• Low Profile: Ideal for minimal floor construction with screed height at inlet between 65–90mm
• Wall Drain Compatibility: Designed for tileable shower wall drains with a lateral outlet connection
• Waterproof & Durable: Mounting plate made of veneered, waterproof-bonded wood (Class B2/D-s2, d0)

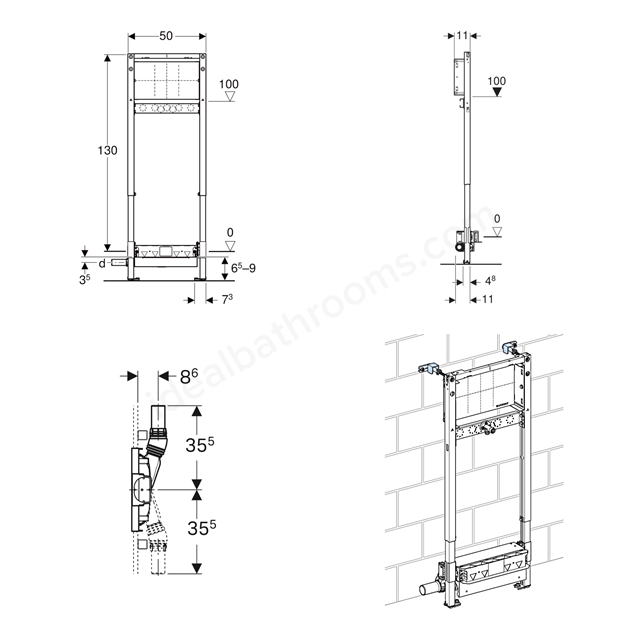

Technical Specifications:
• Water Seal Depth: 30mm
• Inlet Height Adjustment: 65–90mm
• Compatible Tile Structures: Floor: 2–26mm; Wall: 2–35mm
• Concealed or Surface Tap Compatibility
• Discharge Connection: Lateral, Ø40mm (PE-HD)
What’s Included:
• Geberit Duofix Frame with integrated drain module
• Straight connector (PE-HD Ø40mm)
• Elbow tap connector Rp 1/2" / R 1/2"
• Pre-mounted sealing fleece (10cm overlap)
• Sound insulation base
• Insulating sleeve
• Protection box cover with outlet
• Fixing and protection materials
Key Features
- Clean wall integration with a wall drain and wall-mounted tap setup
- Designed for tileable shower wall drains
- Easy installation
- Perfect for low-profile, floor-even showers
- Modern design
