Description
This Geberit Urinal Frame is height-adjustable and designed for concealed urinal systems. Suitable for both metal and wood frame walls, this universal model supports Geberit urinal flush controls, including infrared touchless systems; delivering hygiene, durability, and easy integration for modern washroom environments.
Key Features:
• Height Adjustable: 112–130cm to fit varying urinal models and configurations

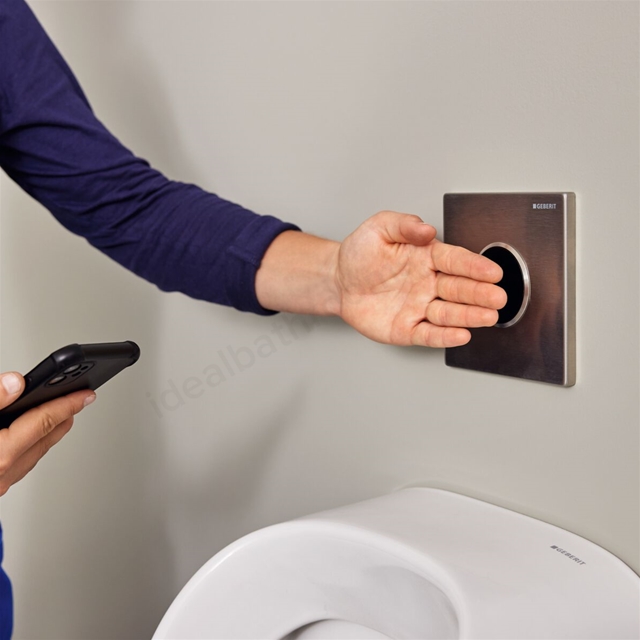

• Universal Compatibility: Fits Geberit urinal flush controls, including touchless infrared units
• Robust Construction: Powder-coated, self-supporting steel frame for corrosion protection and structural stability
• Quick Installation: Tool-free foot plate mounting and integrated crossbars with centring marks for easy alignment
• Smart Water Control: Built-in conduit pipe for rinsing, pre-mounted stop valve with throttle, and a bendable flush hose with guide to prevent standing water
• Sound-Insulated: Includes height-adjustable, sound-absorbing fastening for connection bend
Ideal For:
Commercial buildings, public restrooms, high-traffic venues, or any project where hygiene, concealed aesthetics, and ease of maintenance are priorities.
Technical Specifications:
• Flow Pressure: 1–8 bar
• Test Pressure (Water): Max. 16 bar
• Test Pressure (Air/Inert Gas): Max. 3 bar
• Max. Operating Temperature: 30°C
• Flow Rate @ 1 bar: Without limiter: 0.3 l/s; With limiter: 0.18 l/s
What’s Included:
• Water supply connection R 1/2"
• Urinal trap Ø50mm with seal
• Protection box with cover (cuttable)
• Connection pipe Ø32mm
• Straight PVC connector Ø50mm
• Wall anchors (x2)
• Fastening and protection materials
Key Features
- Height Adjustable: 112–130cm to fit varying urinal models
- Fits Geberit urinal flush controls, including touchless infrared units
- Easy installation
- Built-in conduit pipe for rinsing
- Modern design
