Description

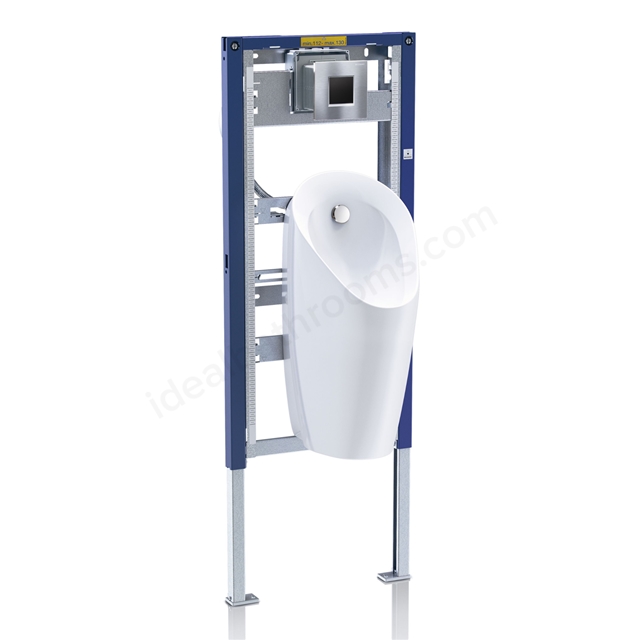

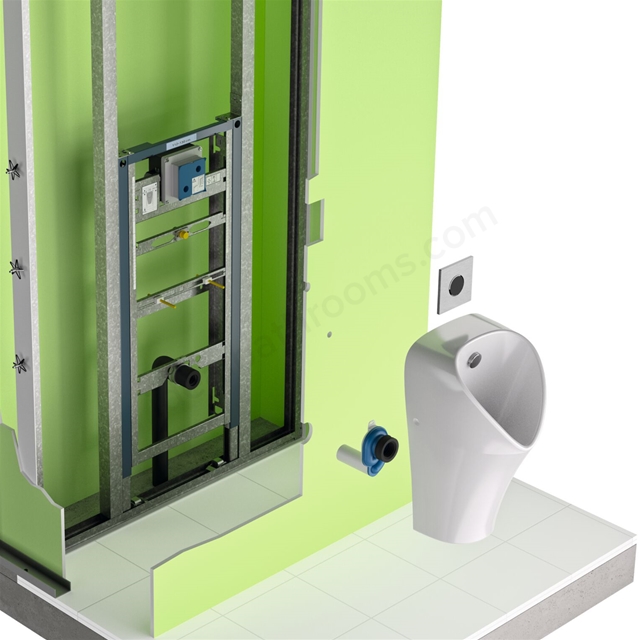

This Geberit Urinal Frame is height-adjustable designed for modern urinals with spray head flushing. Ideal for metal or wood-frame walls, this universal model fits room-height or part-height pre-walls, making it a flexible solution for commercial and public restrooms.
Built for durability and quick installation, the frame features corrosion-resistant materials, tool-free connectors, and pre-configured mounting points for Preda and Selva urinals. It supports Geberit urinal flush controls with integrated concealed housing and electrical connections.
Key Features:

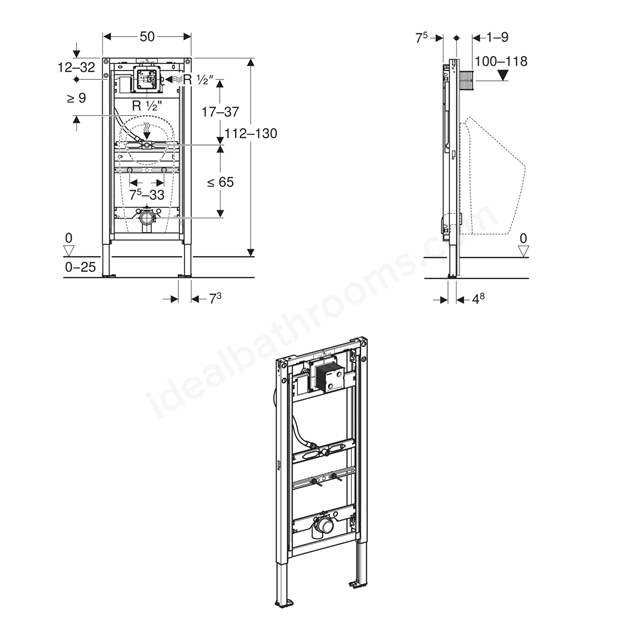

• Adjustable Height: 112–130cm element height to accommodate different urinal sizes
• Universal Application: Compatible with pre-walls, and partition installations
• Corrosion Resistant: Statically self-supporting frame with powder-coated finish
• Flush System Ready: Integrated universal concealed housing for spray head flush controls
• Sound-Insulated Connections: Height-adjustable, sound-absorbing urinal fasteners
• Rinse System: Built-in conduit pipe and flush hose with guide prevent stagnant water
• Compact Access Panel: Service opening cover (10.5 x 10.5cm) easily cut to length
Perfect for:
• High-traffic commercial bathrooms
• Public toilet facilities
• Modern office installations
• Educational and healthcare environments
Technical Specifications:
• Flow pressure 1–8 bar
• Test pressure (water) Max. 16 bar
• Test pressure (air) Max. 3 bar
• Operating temperature Max. 30°C
• Flow rate (1 bar) 0.3 l/s (no limiter) / 0.18 l/s (with limiter)
What’s included:
• Elbow tap connector R 1/2"
• PE-HD connection bend (ø63/50mm)
• Seal (ø57/50mm)
• Urinal trap (ø50mm) with seal
• Protection box with cover
• Fastening and protection material
Key Features
- Integrated universal concealed housing for spray head flush controls
- Built-in conduit pipe and flush hose with guide prevent stagnant water
- Easy installation
- re-configured mounting points for Preda and Selva urinals
- Modern design
