Description
This Frame for Bidets 112cmH is engineered for durability, versatility, and easy integration, this universal frame supports wall-hung bidets with deck-mounted taps and is compatible with both metal and wooden frame constructions.
Designed for fast, hassle-free installation in part or full height pre-walls and partition walls this frame offers unbeatable flexibility and structural reliability. Its corrosion-resistant, powder-coated steel frame ensures long-term performance, while sound-insulating features provide added user comfort.
Perfect for professional installers, bathroom renovators, and self-build projects. Ensure your bidet installation is future-proof, secure, and silent with Geberit Duofix.
Key Features:
• Universal Application: Suitable for installation in room-height or part-height prewalls and partition walls (metal or wood)
• Wall-Hung Compatibility: Designed for wall-hung bidets with deck-mounted taps
• Height Adjustable: Bidet fastening system and connection bend can be height-adjusted
• Sound Insulation: Equipped with sound-absorbing fastening for quiet operation
• Easy Installation: Tool-free mounting in Geberit Duofix rails; rotating foot plates fit UW 50/75 profiles
• Corrosion-Resistant: Powder-coated, self-supporting steel frame ensures long life
• Versatile Connection: Tap attachments adjustable in width and height
Technical Specifications:

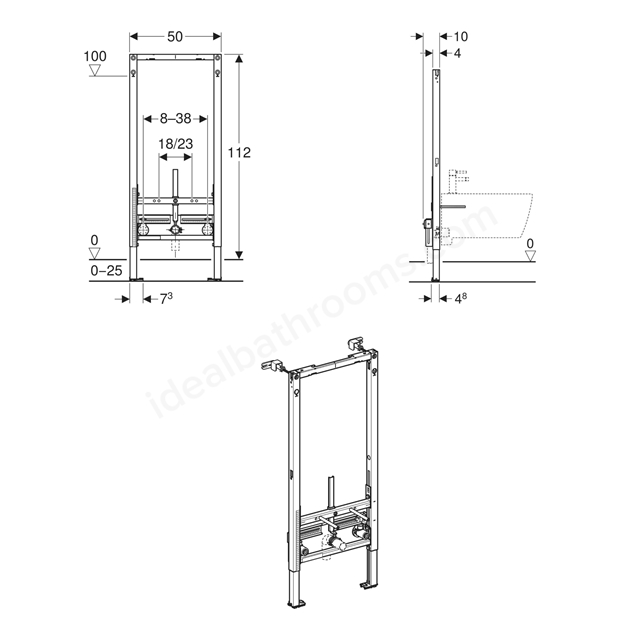

• Frame Height: 112cm
• Installation Height: Adjustable (for floor constructions from 0–25cm)
• Material: Powder-coated steel frame
• Fastening Distance for Bidet: 18 or 23cm
• Max Test Pressure: 15 bar / 1500 kPa
What’s Included:
• 2 x Wall Anchors
• 2 x Angle Stop Valves (½″)
• 2 x Elbow Tap Connectors (Rp ½″ / R ½″, MF compatible)
• 2 x Sealing Washers
• 2 x Sound Insulation Bases
• 2 x Insulating Sleeves
• Fastening and Protection Material
• Self-Adhesive Sealing Washer
Key Features
- Adjustable fit height adjustable fastening for the bidet and connection bend
- for wall-hung bidets with deck-mounted taps
- Easy installation
- Perfect for room height pre-walls and partition walls
- Modern design
